Use Case Diagram

3.1.4 Telehealth Consultation - Events
Use Case Diagram Health Service Event #4 – Complete health service encounter record

Actors

Psychiatrist
Hospital’s EMR system (POS)
Digital Dictation system

Assumptions

The psychiatrist uses an EMR system and he is already logged on this system.
The hospital’s ADT system is interfaced with the hospital’s EMR system. So, when a patient is created/updated in the hospital’s ADT system, the patient index is automatically updated in the hospital’s EMR system.
The psychiatrist uses a Digital Dictation system, which is interfaced with the hospital’s EMR system.

Workflow Event Step	POS Action	EHRi System Action	EHR IP reference
Voice dictation

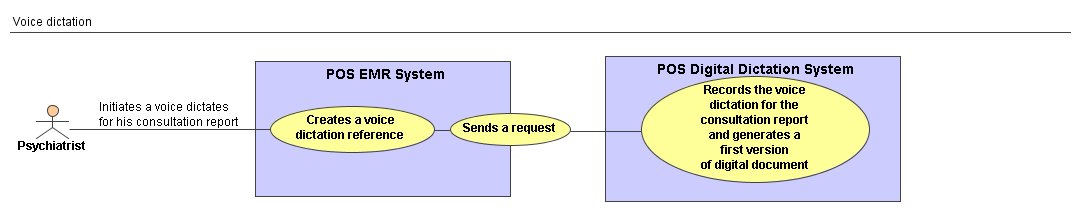

When the consultation with patient is complete, the psychiatrist initiates, by the hospital’s EMR system, a voice dictates for his consultation report (for the involved patient).	The POS EMR system creates a voice dictation reference and sends a request to the POS Digital Dictation system.
	The Digital Dictation system records the voice dictation for the consultation report and generates a first version of digital document.

General Info
Name	Health Service Event #4 – Complete health service encounter record
Type	Use Case Diagram
