EHR IP Sequence Diagrams

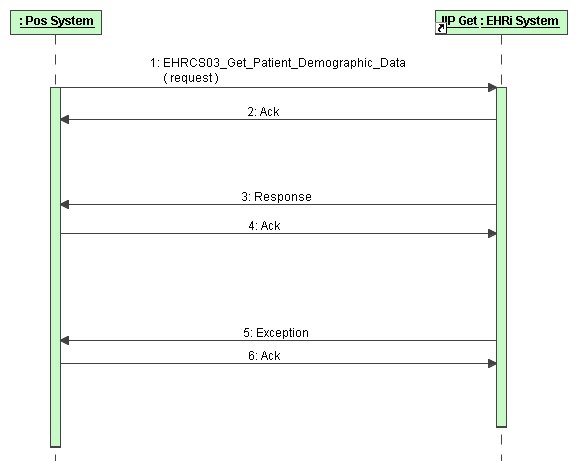

Sequence Diagram EHRIP03 - Get Patient Demographic Data

EHR IP Summary

Description

This EHR Interoperability Profile describes the EHR Communication Steps (EHR_CS) for a user / POS system to access the EHR and retrieve the patient’s core and extended demographic data.

EHR Business Requirement reference

This EHR IP is used by the following Clinical Activities:

Clinical Activity Document Id	Name
D03 - CLACT02 – D* EHR 2.1.1	Pregnancy diagnosis
D03 - CLACT03 – D* - EHR 3.1.4	Telehealth consultation
D03 - CLACT04 – D* EHR 4.1.2	Ophthalmologist
D03 - CLACT10 – D* - EHR 10.1.1	TB First Assessment
D03 - CLACT11 – D* - EHR 11.1.2	Pharmacy
D03 - CLACT11 – D* - EHR 11.1.1	On call

Actors

This EHR IP includes interactions between the following actors:

Actor

Description

Point of Service System (or

EHRi System Web Viewer)

The point of service system used by the Health Care Provider (user)

EHRi System

The system that contains the jurisdictional EHR for this patient.

Preconditions

The user is already authenticated and authorized and logged into the EHRi System and has identified the patient to retrieve and view their demographic data.
The service location id and the provider id that requested this process have been established in previous interactions.

Process Steps

User has selected the desired patient and proceeds with the following steps.

Process Step	POS	EHR Communication Step
.
User requests demographic data for the selected patient	System sends query to the EHRi System specifying the provider identity, the client identity and information location identity.	EHRCS03_Get_Patient_Demographic_Data (request)
	EHRi System responds with the patient’s core and extended demographic data	(response)

Issues

Assumptions / Constraints

Notes

Get SVG Format

General Info
Name	EHRIP03 - Get Patient Demographic Data
Type	Sequence Diagram
