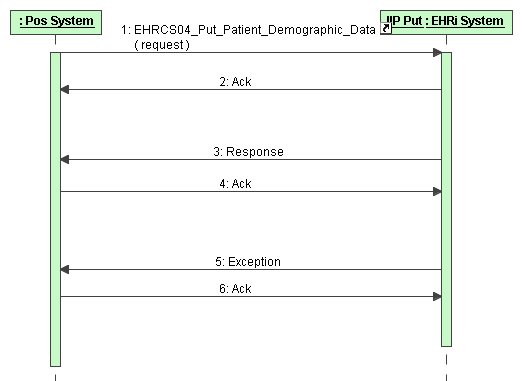

Sequence Diagram EHRIP04 - Put Patient Demographic Data

EHR IP Summary

Description

This EHR Interoperability Profile describes the EHR Communication Steps (EHR_CS) for a user to access the EHR and update the patient’s demographic data.

EHR Business Requirement reference

This EHR IP is used by the following Clinical Activities:

Clinical Activity Document Id	Name
D03 - CLACT02 – D* - EHR 2.1.1	Pregnancy diagnosis
D03 - CLACT11 – D* - EHR 11.1.2	Pharmacy

Actors

This EHR IP includes interactions between the following actors:

Actor

Description

Point of Service System (or

EHRi System Web Viewer)

The point of service system used by the Health Care Provider (user)

EHRi System

The system that contains the jurisdictional EHR for this patient.

Preconditions

The user is already authenticated and authorized and logged into the EHRi System and has identified the patient to retrieve and view their existing demographic data.
The user has made already retrieved the patient demographics and extended demographics (EHRIP03 Get Patient Demographic Data) and has made some changes to the patient demographic or extended demographic information other than key identifiers
The service location id and the provider id that requested this process have been established in previous interactions.

Process Steps

User has selected the desired patient and proceeds with the following steps.

Process Step	POS	EHR Communication Step
.
User requests to record modifications to the demographic / extended data for the selected patient.	System sends a notification to the EHRi System specifying the provider identity, the client identity and the demographic information / extended to be modified.	EHRCS04_Put_Patient_Demographic_Data (request)
	EHRi System responds with the status of the Communication Step interaction	(response)

Issues

Assumptions / Constraints

Notes

Get SVG Format

General Info
Name	EHRIP04 - Put Patient Demographic Data
Type	Sequence Diagram
