EHR IP Sequence Diagrams
Sequence Diagram EHRIP09 - Get Patient Health Profile

EHR IP Summary

Description

This EHR Interoperability Profile describes the EHR Communication Steps (EHR_CS) for a user / system to retrieve and view a patient’s health profile information from the EHR Shared Care Record domain repository. This process includes the following high-level interactions with the EHRi registries and repositories

Client Registry – confirms the supplied patient’s unique identifier exists and is valid
EHR Shared Care Record domain repository – retrieves the patient’s health profile information

EHR Business Requirement reference

This EHR IP is used by the following Clinical Activities:

Clinical Activity Document Id	Name
D03 CLACT04 D* EHR 4.1.2	Ophthalmologist
D03 CLACT05 D* EHR 5.1.4	ER visit
D03 CLACT06 D* EHR 6.1.4	ACL Reconstruction
D03 CLACT06 D* EHR 6.1.2	ER Knee
D03 CLACT07 D* EHR 7.1.1	EMT
D03 CLACT09 D* EHR 9.1.1	Immunization at schoo
D03 CLACT10 D* EHR 10.1.4	TB Diagnosis
D03 CLACT11 D* EHR 11.1.1	On call
D03 CLACT12 D* EHR 12.1.1	Dental

Actors

This EHR IP includes interactions between the following actors:

Actor

Description

Point of Service System (or

EHRi System Web Viewer)

The point of service system used by the Health Care Provider (user)

EHRi System

The system that contains the jurisdictional EHR for this patient.

Preconditions

The user is already authenticated and authorized and logged into the EHRi System and has identified the patient to retrieve the health profile
The location id of the service delivery organization and the provider id who initiated this process have already been established

Process Steps

User has selected the desired patient in the POS application and proceeds with the following steps.

Process Step	POS	EHR Communication Step
.

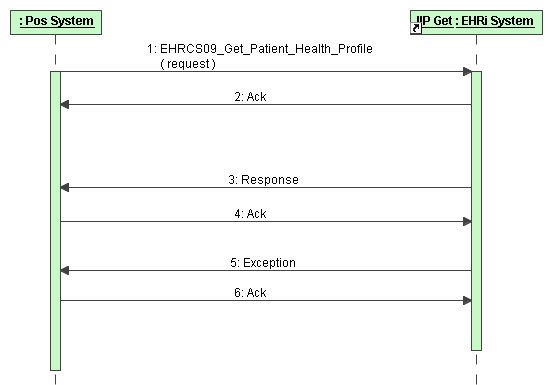

User requests to view a patient’s health profile information in the EHRi System	System sends a request to the EHRi System specifying the provider identity, and the client identifying information to retrieve and display the patient’s health profile	EHRCS09_Get_Patient_Health_Profile (request)
		The EHRi System IIP Get workflow manages the following high level interactions: Confirms the patient’s unique identifier in the Client Registry Retrieves the Health Profile information for this patient from the EHR repository
	The POS System receives the response from the EHRi System with · the status of the Communication Step interaction · the patient’s Health Profile data	EHRCS09_Get_Patient_Health_Profile (response)

Issues

Assumptions / Constraints

Notes

Get SVG Format

General Info
Name	EHRIP09 - Get Patient Health Profile
Type	Sequence Diagram
