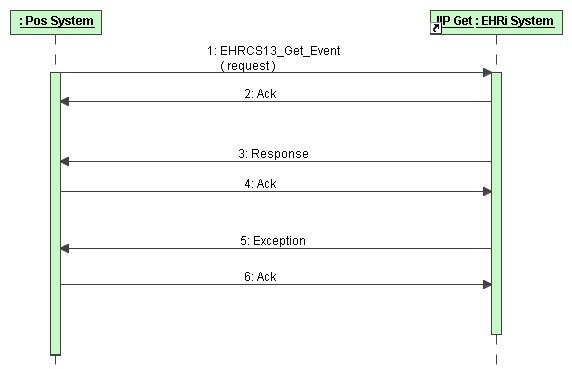

Sequence Diagram EHRIP13 - Get Event

EHR IP Summary

Description

This EHR Interoperability Profile describes the process for a user to access the EHRi System and retrieve a patient’s Event details.

EHRIP Get Event will use the communication step EHRCS13 Get Event to retrieve a patient’s event with all of its associated Events as a single logical record from the EHRi System. An EHRIP Get Event process may return multiple sub-events as a composite interaction.

The Get Event parameters and constraints will determine the type of patient event data that is retrieved from one or more of the following EHRi System repositories:

EHR Shared Care Record domain repository
DI Domain Repository
Drug Domain Repository
Lab Domain Repository
Public Health Domain Repository

Examples

The following is a list of example services that would use the generic “Get Event” type of interoperability profile pattern to retrieve patient clinical data.

EHR IP (type Get Event)	Description
Get Client Encounter Summary	Request the detailed information about a specific encounter summary event available in the EHR of a given client
Get Laboratory Result Details	Request the detailed information about a specific laboratory result event available in the EHR of a client.
Get Communicable Disease Report Details	Request the detailed information available in the EHR about a specific communicable disease report event

EHR Business Requirement reference

This EHR IP is used by the following Clinical Activities:

Clinical Activity Document Id	Name
D03 CLACT01 D* EHR 1.1.1	New family physician visit
D03 CLACT02 D* EHR 2.1.2	Chlamydia notification
D03 CLACT02 D* EHR 2.1.3	Chlamydia result
D03 CLACT03 D* EHR 3.1.1	Depression assessment
D03 CLACT03 D* EHR 3.1.2	New family physician
D03 CLACT03 D* EHR 3.1.4	Telehealth consultation
D03 CLACT03 D* EHR 3.1.5	Consultation results
D03 CLACT04 D* EHR 4.1.1	Referral to ophthalmologist
D03 CLACT04 D* EHR 4.1.2	Ophthalmologist
D03 CLACT05 D* EHR 5.1.2	DM Clinic
D03 CLACT05 D* EHR 5.1.4	ER visit
D03 CLACT06 D* EHR 6.1.2	ER Knee
D03 CLACT06 D* EHR 6.1.4	ACL Reconstruction
D03 CLACT07 D* EHR 7.1.3	CCAC
D03 CLACT07 D* EHR 7.1.4	Home care
D03 CLACT10 D* EHR 10.1.3	DI Report
D03 CLACT11 D* EHR 11.1.1	On call
D03 CLACT11 D* EHR 11.1.2	Pharmacy
D03 CLACT11 D* EHR 11.1.3	Error Correction
D03 CLACT12 D* EHR 12.1.1	Dental visit

Actors

This EHR IP includes interactions between the following actors:

Actor

Description

Point of Service System (or

EHRi System Web Viewer)

The point of service system used by the Health Care Provider (user)

EHRi System

The system that contains the jurisdictional EHR for this patient.

Preconditions

The user is already authenticated and authorized and logged into the EHRi System and has identified the patient
The service location id and the provider id that requested this process have been established in previous interactions.
The required Event is uniquely identified

Process Steps

User has selected the desired patient’s Event and proceeds with the following steps.

Process Step	POS	EHR Communication Step
User requests to retrieve a patient’s Event.	POS System sends a request to the EHRi System specifying the provider identity, the client identity and the identity of the Event to be retrieved.	EHRCS13_Get_Event (request)
		The IIP_Get EHR Workflow Services: Authenticates the user Validates the business rules of the Get Event request Validates the client id Determines any patient consent rules to be applied Locates the requested patient’s event information Initiates and manages the message query to retrieve the patient’s event data from the desired EHRi System repository Assembles a response message
	POS system receives the status of the Communication Step interaction and the details of the Event	(response)

Issues

Assumptions / Constraints

Notes
