Description
This EHR Interoperability Profile describes the EHR Communication Steps (EHR_CS) for a user to log on to the EHRi system.
EHR Business Requirement reference
This EHR IP is used by the following Clinical Activities:
|
Clinical Activity Document Id |
Name |
|
D03 CLACT02 D* EHR 2.1.3 |
Chlamydia result |
|
D03 - CLACT03 - D1 - EHR 3.1.5 |
Consultation results |
|
D03 - CLACT11 - D3 - EHR 11.1.1 |
On call |
Actors
This EHR IP includes interactions between the following actors:
|
Actor |
Description |
|
Point of Service System (or EHRi system Web Viewer) |
The point of service system used by the Health Care Provider (user) |
|
EHRi system |
The system that contains the jurisdictional EHR for this patient. |
Preconditions
User proceeds with the following steps.
|
Process Step |
POS |
EHR Communication Step |
|
. |
|
|
|
User requests to log on to the EHRi system |
POS System sends a request to the EHRi system specifying the provider identity to log on
|
EHRCS16 User Log On |
|
|
POS system receives the EHR Communication Step response status |
(response) |
| General Info | |
|---|---|

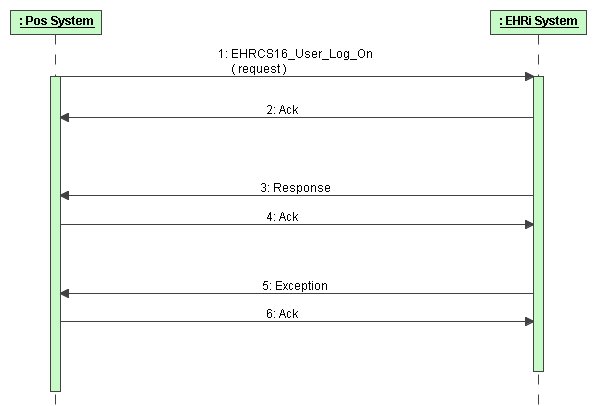

| Name | EHRIP16 - User Log On |
| Type | Sequence Diagram |
