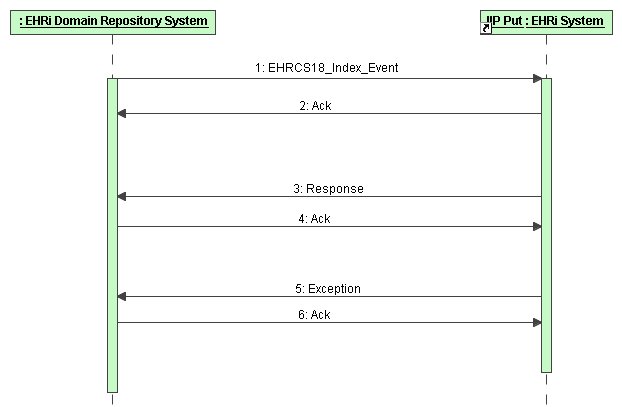

Sequence Diagram EHRIP19 - Index Event

EHR IP Summary

Description

This EHR Interoperability Profile describes the process for an EHRi Domain Repository System (e.g. Drug, DI, Lab, Public Health) to create an entry in the EHR Index for a patient clinical event recorded in EHRi Data Domain Repositories other than the EHR Shared Care Record domain repositories. The indexing of EHR Shared Care Record domain information is included in the EHRIP15 Put Event services that record that information.

This service is to allow domain specific systems such as Lab, DI, Drug, Public Health to record patient data as part of their normal business process in separate repositories and in addition create an entry in the EHR index to record the patient, the type and location of where the information is stored. This will allow users in subsequent interactions with the EHRi System, to search the EHR Index for patient information located in different EHR domain repositories.

The EHRi system will create a unique entry in the EHR Index for each newly created domain specific Event using attributes derived from Index Event payload information as well as already established user and location identifiers.

It is important to note that this service is invoked after the patient information has been recorded in a domain specific repository.

EHR Business Requirement reference

This EHRIP19 Index Event is used by the following Clinical Activities:

Clinical Activity Document Id	Name
D03 CLACT02 D* EHR 2.1.2	Chlamydia notification
D03 CLACT05 D* EHR 5.1.4	ER visit
D03 CLACT06 D* EHR 6.1.2	ER Knee
D03 CLACT10 D* EHR 10.1.3	DI Report
D03 CLACT11 D* EHR 11.1.2	Pharmacy

Actors

This EHR IP includes interactions between the following actors:

Actor	Description
EHRi Domain Repository system	The jurisdictional system that recorded the patient Event to be indexed in the EHR Index
EHRi system	The system that contains the jurisdictional EHR Index.

Preconditions

The client id has been resolved with the Client Registry
An EHRi jurisdictional system has recorded a clinical event for a patient that will also need an entry created in the EHR Index
The jurisdictional system is already authenticated and authorized to access the EHRi system and has identified the Event to be recorded in the EHR Index
The service location id and the provider id that requested this process have been established in previous interactions

Process Steps

User has selected the desired patient and proceeds with the following steps.

Process Step	EHRi Domain Repository System	EHR Communication Step
A patient Event is recorded in an EHRi Domain Repository System	The EHRi Domain Repository System sends a notification to the EHRi system specifying the provider identity, the client identity and the identity / location of Event to be indexed in the EHR Index.	EHRCS18_Index_Event
	EHRi system responds with the status of the Communication Step interaction to the EHRi Domain Repository System	(response)

Issues

Assumptions / Constraints

Notes

Get SVG Format

General Info
Name	EHRIP19 - Index Event
Type	Sequence Diagram
