4.1.2 Ophthalmologist - Events

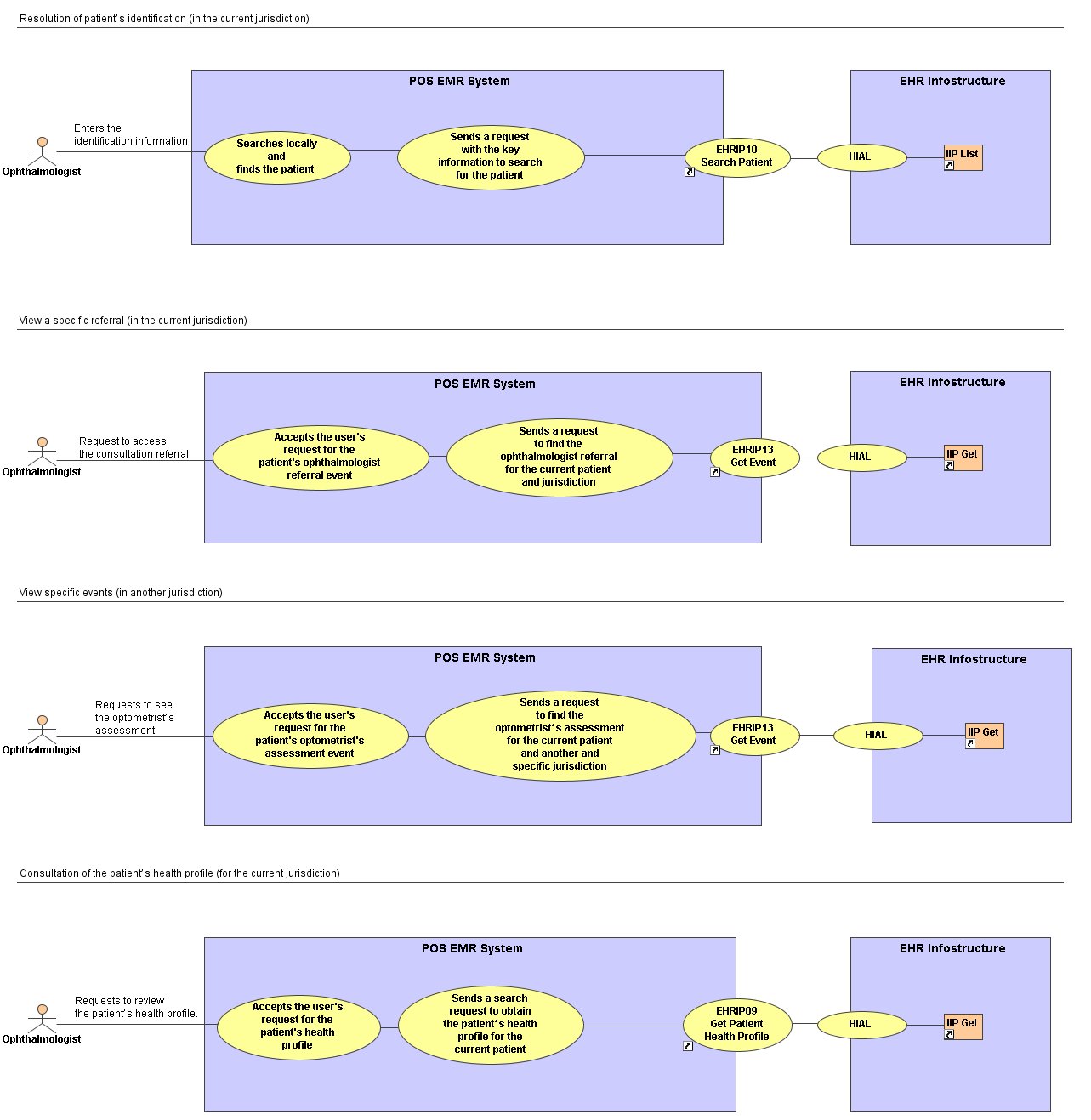

Use Case Diagram Health Service Event #2 – Patient’s EHR evaluation Event Diagram

Actors

Ophthalmologist
Clinic’s EMR system
EHRi systems

Assumptions

The ophthalmologist uses an EMR system and he is already logged on this system.
The clinic’s ADT system is interfaced with the clinic’s EMR system. So, when a patient is created/updated in the clinic’s ADT system, the patient index is automatically updated in the clinic’s EMR system.
To resolve the patient’s identification, the provincial health care number is also used, because it is key information to find the patient. In this case, the ophthalmologist uses the following key information to find the patient: name, birth date, and provincial health care number.
The resolution of the patient’s identification information is also necessary to obtain a “temporary” unique patient identifier from the EHR, to allow the user to view and update the patient’s record. The “temporary” unique patient identifier (EHRi Transaction Client ID) is provided by the EHRi only for one user session (without a break in the time), for the same patient and the same provider (person) who are engaged in the health service event. If there is an interruption during a health service, this becomes another health service event, and another resolution of the patient’s identification is required to obtain another “temporary” unique patient identifier (EHRi Transaction Client ID).
The ophthalmologist wants to see the optometrist’s assessment event from five years ago, in jurisdiction where the patient has lived, so the search request is only for detail event of health service encounter (optometrist), not the health service encounter.
The “health profile” is an organized collection of specific events, whose definition depends on practices of each organization and jurisdiction. In this case, two jurisdictions are involved but the ophthalmologist want to see the “health profile” for the current jurisdiction.

Workflow Event Step	POS Action	EHRi System Action	EHR IP reference
Just before the patient, the ophthalmologist accesses patient record.
Resolution of patient’s identification (in the current jurisdiction)
The ophthalmologist verifies the identification information and enters them in the clinic’s EMR system.	The POS EMR system searches locally and finds the patient. The POS EMR system sends, to the EHRi system, a request with the key information (ex. name, birth date, provincial health care number) (and to obtain a EHRi Transaction Client ID).	The EHRi system searches the client, in the current jurisdiction, with the provided key information (ex. name, birth date, provincial health care number) and finds the client.	EHRIP10 Search Patient
		The EHRi System Client Registry returns, to POS system, the corresponding patient record (with a EHRi Transaction Client ID).
	The POS EMR system displays the corresponding record of current patient.
View a specific referral (in the current jurisdiction)
The ophthalmologist confirms the patient’s identity and does a request, through the clinic’s EMR system, to access the consultation referral (with specific criteria).	The POS EMR system sends, to EHRi system, a request to find the ophthalmologist referral for the current patient and jurisdiction (for the EHRi Transaction Client ID).	The EHRi system searches in the current jurisdiction, the ophthalmologist referral event for the current patient (for the EHRi Transaction Client ID).	EHRIP13 Get Event
		The EHRi returns, to POS system, the ophthalmologist referral event for the current patient and jurisdiction.
	The POS EMR system receives and displays the ophthalmologist referral event for the current patient.
The ophthalmologist sees the referral, which summarizes the clinical case and outlines the reason for the consultation.
View specific events (in another jurisdiction)
With the reference in the referral, the ophthalmologist does a request, through the clinic EMR system, to see the optometrist’s assessment (with specific criteria).	The POS EMR system sends, to EHRi system, a request to find the optometrist’s assessment for the current patient and another and specific jurisdiction.	The EHRi system searches and finds, in another and specific jurisdiction, the optometrist’s assessment event for the current patient.	EHRIP13 Get Event
		The EHRi system returns, to POS system, the optometrist’s assessment event for the current patient.
	The POS EMR system receives and displays the optometrist’s assessment event for the current patient.
The ophthalmologist reviews the findings in the latest optometrist’s assessment.
Consultation of the patient’s health profile (for the current jurisdiction)
The ophthalmologist does a request through his clinic’s EMR system to review the patient’s health profile.	The POS EMR system sends, to the EHRi system, a search request to obtain the patient’s health profile for the current patient (for the EHRi Transaction Client ID) and jurisdiction.	The EHRi system searches and finds (in current jurisdiction) the information of health profile for the current patient (for the EHRi Transaction Client ID).	EHRIP09 Get Patient Health Profile
		The EHRi system returns, to POS system, the health profile for the current patient.
	The POS EMR system receives, organizes and displays the patient’s health profile.
The ophthalmologist reviews the patient’s health profile.

Get SVG Format

General Info
Name	Health Service Event #2 – Patient’s EHR evaluation Event Diagram
Type	Use Case Diagram
