Use Case Diagram

4.1.2 Ophthalmologist - Events

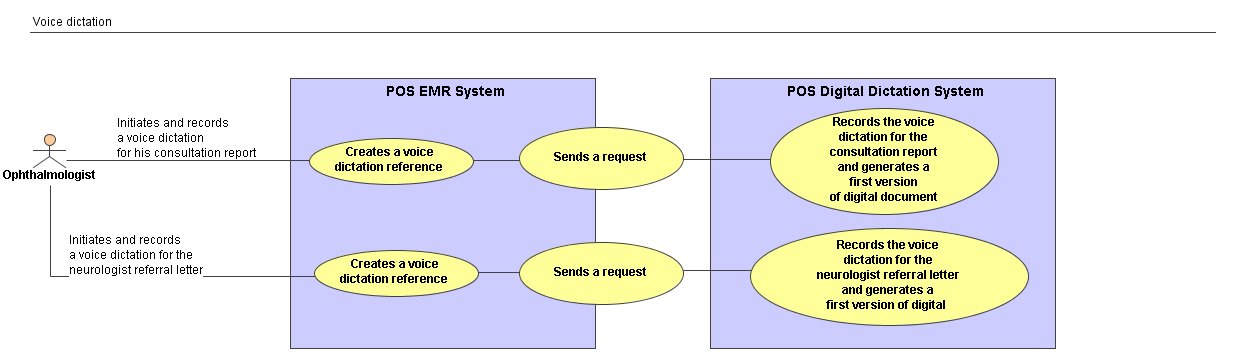

Use Case Diagram Health Service Event #4 – Complete the health service encounter record Event Diagram

Actors

Ophthalmologist
Clinic’s EMR system (POS)
Digital Dictation system

Assumptions

The ophthalmologist uses an EMR system and is already logged on this system.
The clinic’s ADT system is interfaced with the clinic’s EMR system and a patient record is automatically created in the clinic’s EMR system.
The ophthalmologist uses a Digital Dictation system, which is interfaced with the clinic’s EMR system.

Workflow Event Step	POS Action	EHRi System Action	EHR IP reference
Voice dictation
By the clinic’s EMR system, the ophthalmologist initiates and records a voice dictates for his consultation report	The POS EMR system creates a voice dictation reference and sends a request to the POS Digital Dictation system
	The Digital Dictation system records the voice dictation for the consultation report and generates a first version of digital document
By the clinic’s EMR system, the ophthalmologist initiates and records a voice dictates for the neurologist referral letter	The POS EMR system creates a voice dictation reference and sends a request to the POS Digital Dictation system
	The POS Digital Dictation system records the voice dictation for the neurologist referral letter and generates a first version of digital document

General Info
Name	Health Service Event #4 – Complete the health service encounter record Event Diagram
Type	Use Case Diagram
