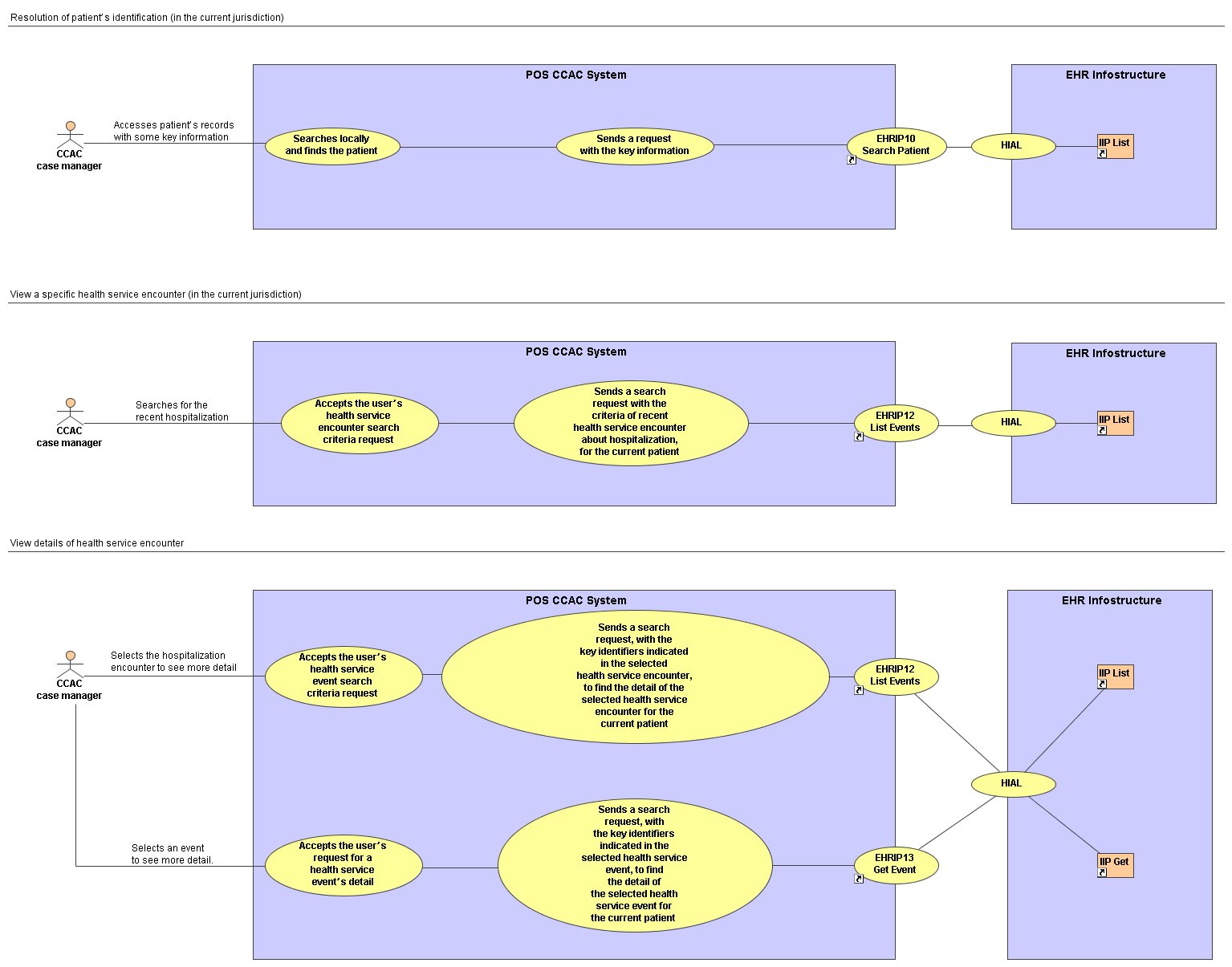

Use Case Diagram Health Service Event #1 – Patient assessment Event Diagram

Actors

Patient
CCAC case manager
CCAC Information system (POS)
EHRi systems

Assumptions

There is one involved jurisdiction (for this health service encounter); also, there is one (minimum) EHR.
The patient and his consent are already registered in the CCAC Information system. Because consent management depends on the legislation of each jurisdiction it is not described in detail in this document.
The CCAC case manager is already logged on the CCAC Information system.
To resolve the patient’s identification, the provincial health care number is also used, because it is key information to find the patient. In this case, the CCAC case manager uses the following key information to find the patient: name, birth date, and provincial health care number.
The resolution of the patient’s identification information is also necessary to obtain a “temporary” unique patient identifier from the EHR, to allow the user to view and update the patient’s record. The “temporary” unique patient identifier (EHRi Transaction Client ID) is provided by the EHRi only for one user session (without a break in the time), for the same patient and the same provider (person) who are engaged in the health service event. If there is an interruption during a health service, this becomes another health service event, and another resolution of the patient’s identification is required to obtain another “temporary” unique patient identifier (EHRi Transaction Client ID).
The CCAC case manager wants to see the recent hospitalization encounter.
The summary list of health service encounters contains only the key identifiers of each selected (with parameters) health service encounters.
The detail of the selected health service encounter can contain many events (ex.: admission, illness history, exam, diagnosis, prescription) and sub-events.

Workflow Event Step	POS Action	EHRi System Action	EHR IP reference
The CCAC case manager meets with patient and reviews his recent health events with him.
Resolution of patient’s identification (in the current jurisdiction)
The CCAC case manager accesses patient’s records with some key information.	The POS CCAC Information system searches locally and finds the patient. The POS CCAC Information system sends, to the EHRi system, a request with the key information (ex. name, birth date, provincial health care number) (and to obtain a EHRi Transaction Client ID).	The EHRi system searches and finds for the client in the current jurisdiction, with the provided key information (ex. name, birth date, provincial health care number).	EHRIP10 Search Patient
		The EHRi System Client Registry returns, to POS system, the corresponding patient record (with a EHRi Transaction Client ID).
	The POS CCAC Information system displays the corresponding record of current patient.
View a specific health service encounter (in the current jurisdiction)
The CCAC case manager searches the recent hospitalization through CCAC Information system.	The POS CCAC Information system sends, to the EHRi system, a search request with the criteria of recent health service encounter about hospitalization, for the current patient (for the EHRi Transaction Client ID).	The EHRi system searches and findsthe recent health service encounter about hospitalization for the current patient (for the EHRi Transaction Client ID).	EHRIP12 List Events (Event Type = Encounter)
		The EHRi system returns, to POS system, a summary list with key identifiers indicated in the health service encounters.
	The POS CCAC Information system displays the summary list with key identifiers indicated in the health service encounters.
View details of health service encounter
The CCAC case manager looks at the summary list of health service encounter and selects the hospitalization encounter to see more detail.	The POS CCAC Information system sends, to the EHRi system, a search request, with the key identifiers indicated in the selected health service encounter, to find the detail of the selected health service encounter for the current patient (for the EHRi Transaction Client ID).	The EHRi system searches, with the key identifiers indicated in the selected health service encounter, and finds every contained event in the selected health service encounter.	EHRIP12 List Events (Event Type = Encounter ID)
		The EHRi system returns, to POS system, a health service event list.
	The POS CCAC Information system displays the health service event list.
The CCAC case manager looks at the summary list of health service events and selects an event to see more detail. (the CCAC case manager can repeat this step for each health service event as needed, and depending on the health service event structure)	The POS CCAC Information system sends, to the EHRi system, a search request, with the key identifiers indicated in the selected health service event, to find the detail of the selected health service event for the current patient (for the EHRi Transaction Client ID).	The EHRi system searches, with the key identifiers indicated in the selected health service event, and finds the detail of event in the selected health service event.	EHRIP13 Get Event
		The EHRi system returns, to POS system, the detail of health service event.
	The POS CCAC Information system displays the detail of health service event.
The CCAC case manager reviews the medical, nursing, social worker, pharmacy, respiratory therapy, speech therapy, physiotherapy and occupational therapy notes and/or discharge summaries.
The case manager does her own assessment of patient and, together, they formulate a plan of service.
