Use Case Diagram

7.1.4 Home care - Events

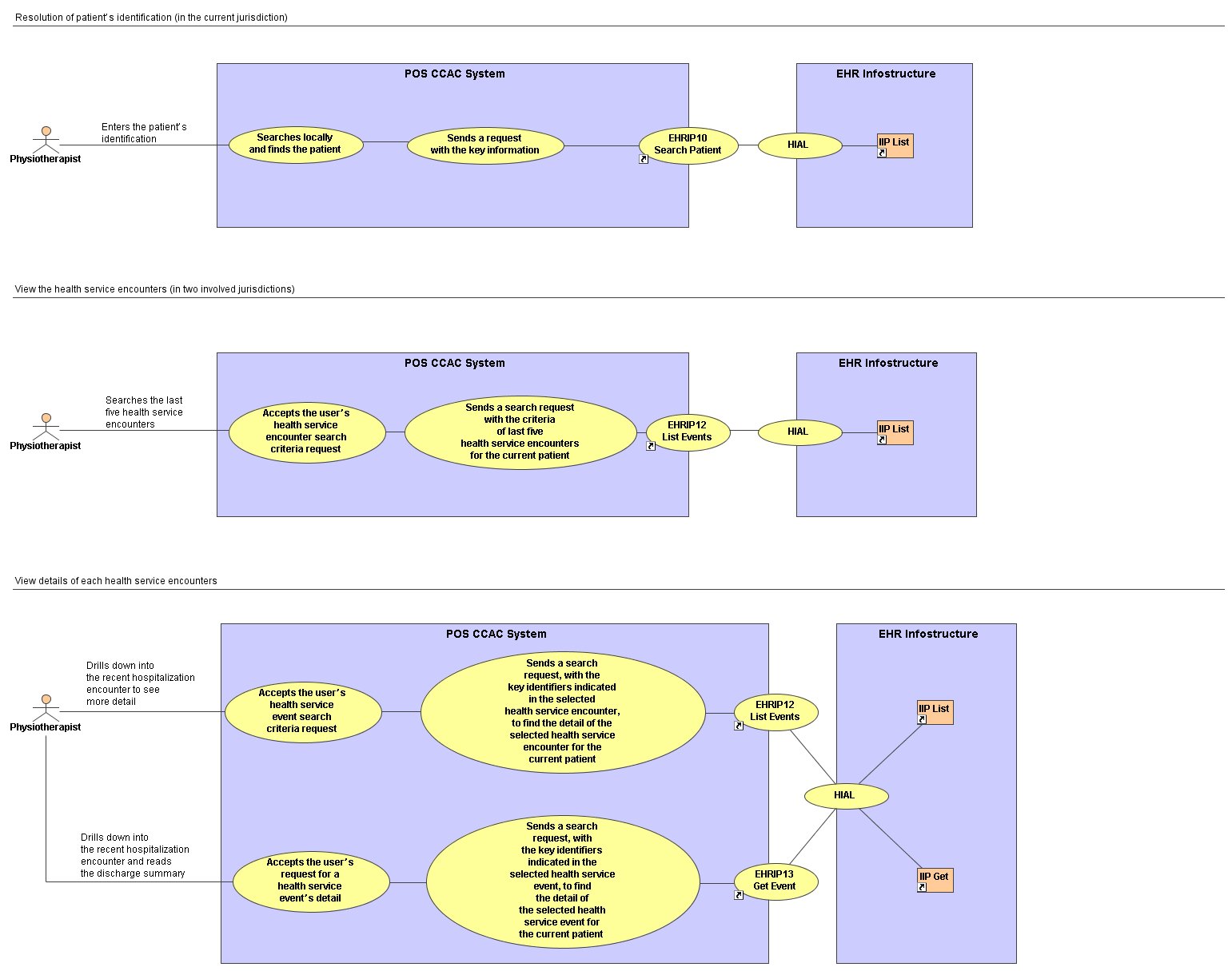

Use Case Diagram Health Service Event #1 - Patient’s EHR evaluation Event Diagram

Actors

Physiotherapist
CCAC Information system (POS)
EHRi systems

Assumptions

There are two involved jurisdictions (e.g. the jurisdiction where the visit takes place is the same as that were the patient lives and the other jurisdiction where a health service encounter took place during the period of COPD (see 1.1.1)); also, there is two (minimum) EHR.
The physiotherapist uses a CCAC Information system and is already logged on this system.
The patient and his consent are already registered in the CCAC Information system. Because consent management depends on the legislation of each jurisdiction it is not described in detail in this document.
To resolve the patient’s identification, the provincial health care number is also used, because it is key information to find the patient. In this case, the physiotherapist uses the following key information to find the patient: name, birth date, and provincial health care number.
The resolution of the patient’s identification information is also necessary to obtain a “temporary” unique patient identifier from the EHR, to allow the user to view and update the patient’s record. The “temporary” unique patient identifier (EHRi Transaction Client ID) is provided by the EHRi only for one user session (without a break in the time), for the same patient and the same provider (person) who are engaged in the health service event. If there is an interruption during a health service, this becomes another health service event, and another resolution of the patient’s identification is required to obtain another “temporary” unique patient identifier (EHRi Transaction Client ID).
The physiotherapist wants to see the last five health service encounters doesn't much matter the place where they took place (because there is two involved jurisdictions); the EHRi system localizes the patient in two jurisdictions.
The summary list of health service encounters contains only the key identifiers of each selected (with parameters) health service encounters.
The detail of the selected health service encounter can contain many events (ex.: admission, illness history, exam, diagnosis, prescription) and sub-events.

Workflow Event Step	POS Action	EHRi System Action	EHR IP reference
Resolution of patient’s identification (in the current jurisdiction)
The physiotherapist assigned to work with patient enters the patient’s identification in the CCAC Information system.	The POS CCAC Information system searches and finds locally the identification of patient. The POS CCAC Information system sends, to the EHRi system, a request with the key information (ex. name, birth date, provincial health care number) (and to obtain a EHRi Transaction Client ID).	The EHRi system searches the client, in the current jurisdiction, with the provided key information (ex. name, birth date, provincial health care number) and finds the client.	EHRIP10 Search Patient
		The EHRi System Client Registry returns, to POS system, the corresponding patient record (with a EHRi Transaction Client ID).
	The POS CCAC Information system displays the corresponding record of current patient.
View the health service encounters (in two involved jurisdictions)
The physiotherapist confirms the patient’s identity and searches the last five health service encounters.	The POS CCAC Information system sends, to the EHRi system, a search request with the criteria of last five health service encounters for the current patient (for the EHRi Transaction Client ID).	The EHRi system searches and finds (in the two involved jurisdictions) the last five health service encounters for the current patient (for the EHRi Transaction Client ID).	EHRIP12 List Events (Event Type = Encounter)
		The EHRi system returns, to POS system, a summary list with key identifiers indicated in the health service encounters.
	The POS CCAC Information system displays the summary list with key identifiers indicated in the health service encounters.
View details of each health service encounters
The physiotherapist looks at the summary list of health service encounters and drills down into the recent hospitalization encounter to see more detail. (the physiotherapist can repeat this step for each health service encounter as needed, and depending on the health service encounter structure)	The POS CCAC Information system sends, to the EHRi system, a search request, with the key identifiers indicated in the selected health service encounter, to find the detail of the selected health service encounter for the current patient (for the EHRi Transaction Client ID).	The EHRi system searches, with the key identifiers indicated in the selected health service encounter, and finds every contained event in the selected health service encounter.	EHRIP12 List Events
		The EHRi system returns, to POS system, a health service event list.
	The POS CCAC Information system displays the health service event list.
The physiotherapist looks at the summary list of health service events and selects an event to see more detail. (the physiotherapist can repeat this step for each health service event as needed, and depending on the health service event structure)	The POS CCAC Information system sends, to the EHRi system, a search request, with the key identifiers indicated in the selected health service event, to find the detail of the selected health service event for the current patient (for the EHRi Transaction Client ID).	The EHRi system searches, with the key identifiers indicated in the selected health service event, and finds the detail of event in the selected health service event.	EHRIP13 Get Event
		The EHRi system returns, to POS system, the detail of health service event.
	The POS CCAC Information system displays the detail of health service event.
The physiotherapist drills down into the recent hospitalization encounter and reads the discharge summary: - Demographic data, - Hospitalization dates, - Admitting diagnosis, - Discharge diagnosis, - Summary of hospitalization, - Discharge plan.
The physiotherapist reads also the physiotherapy notes: - Date, - History, - Examination, - Treatment provided.
From this, the physiotherapist has a good impression of the history of patient’s stroke, his deficits from it, the treatment thus far and the ongoing management plan.

Get SVG Format

General Info
Name	Health Service Event #1 - Patient’s EHR evaluation Event Diagram
Type	Use Case Diagram
