Actors
Assumptions
Workflow Event Step |
POS Action |
EHRi System Action |
EHR IP reference |
The patient and his family had previously decided with physician that attempts will not be made to resuscitate him should the situation arise. The physician accesses the patient record through the EMR system to record this patient directive. |
|||
Resolution of patient’s identification (in the current jurisdiction) |
|||
The physician enters the patient’s identification information in the EMR system. |
The POS EMR system searches and finds locally the identification of patient. The POS EMR system sends, to the EHRi system, a request with the key information (ex. name, birth date, provincial health care number) (and to obtain a EHRi Transaction Client ID). |
The EHRi system searches the client, in the current jurisdiction, with the provided key information (ex. name, birth date, provincial health care number) and finds the client. |
EHRIP10 Search Patient |
The EHRi System Client Registry returns, to POS system, the corresponding patient record (with a EHRi Transaction Client ID). |
|||
The POS EMR system displays the corresponding record of current patient. |
|||
Record patient’s wish (in the current jurisdiction) |
|||
The physician records the patient’s wish in the EMR system as a patient directive. |
The POS EMR system is updated with the patient directive. The POS EMR system sends, to the EHRi system, an update request to record the directive for the current patient (for the EHRi Transaction Client ID). |
The EHRi system adds the directive for the current patient (for the EHRi Transaction Client ID). |
EHRIP15 Put Event |
The EHRi system returns, to POS system, an acknowledgment that the update request is completed. |
|||
The POS EMR system displays an acknowledgment about the completed update request. |
General Info | |
---|---|

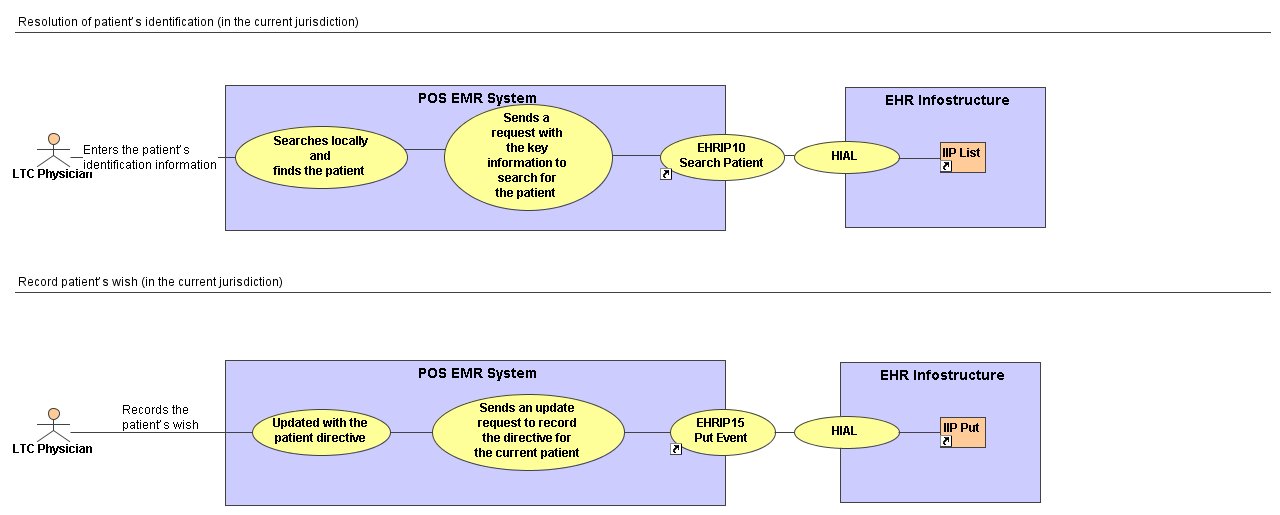

Name | Health Service Event #1 – Record patient’s care directive Event Diagram |
Type | Use Case Diagram |
